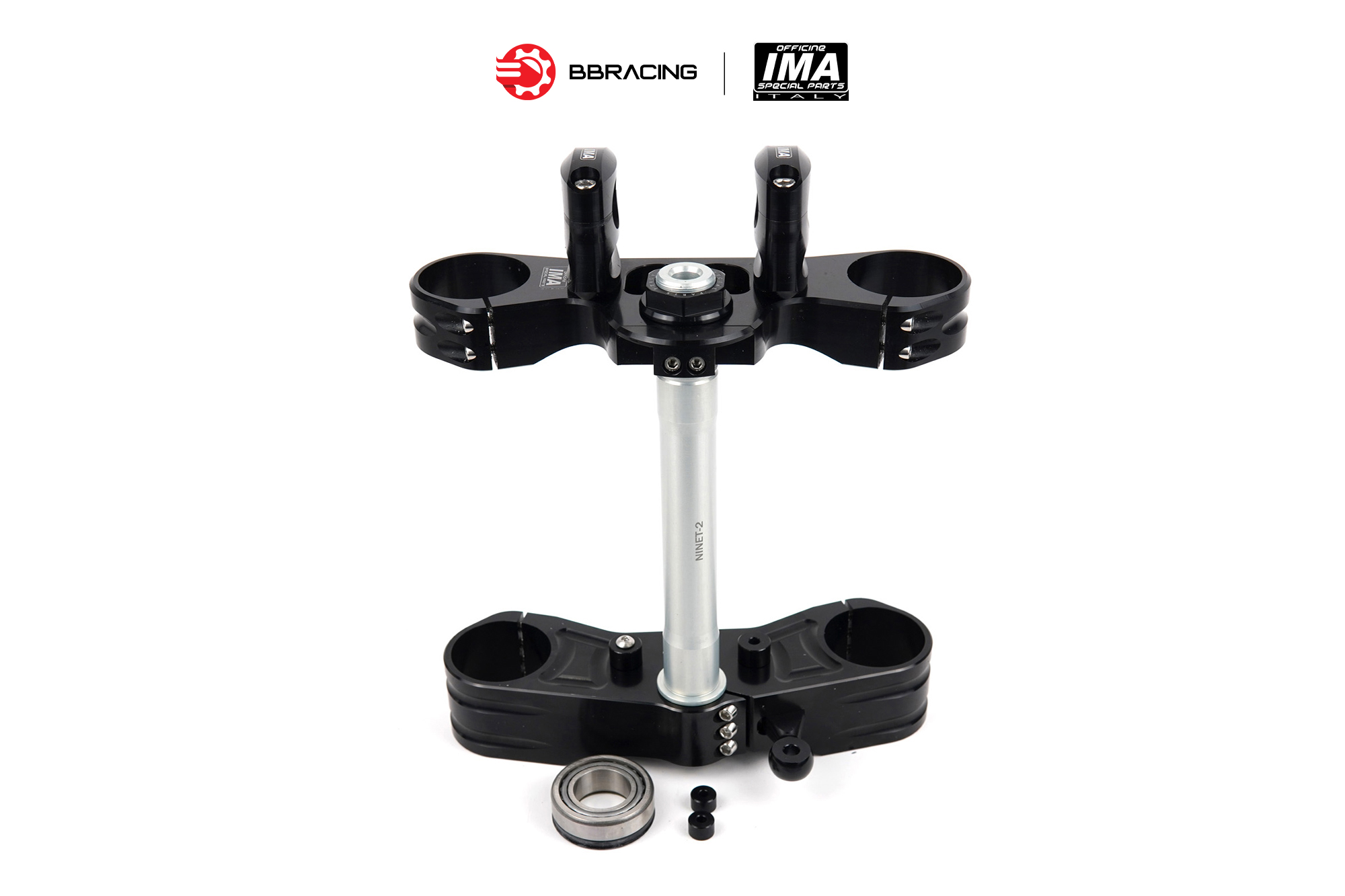

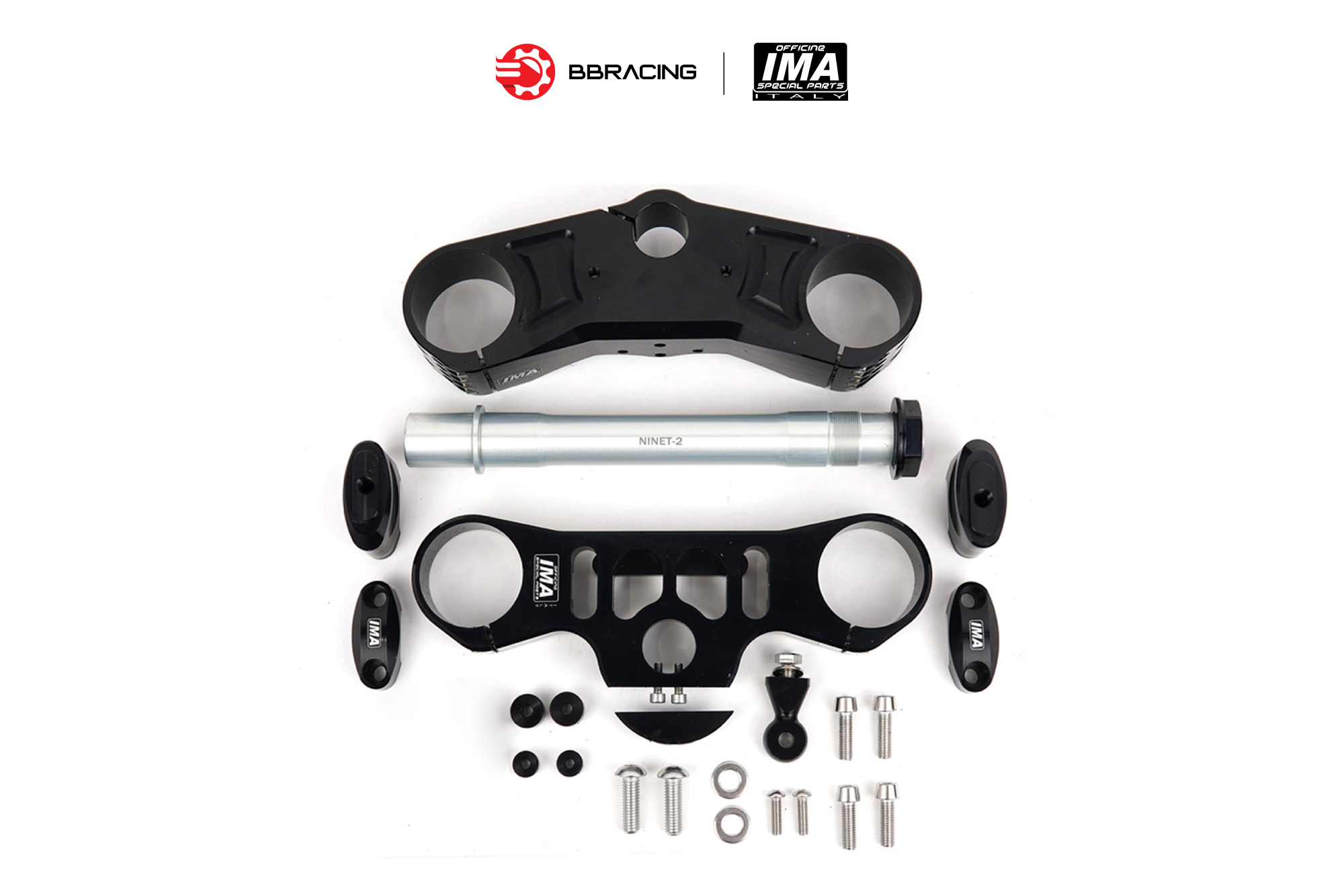

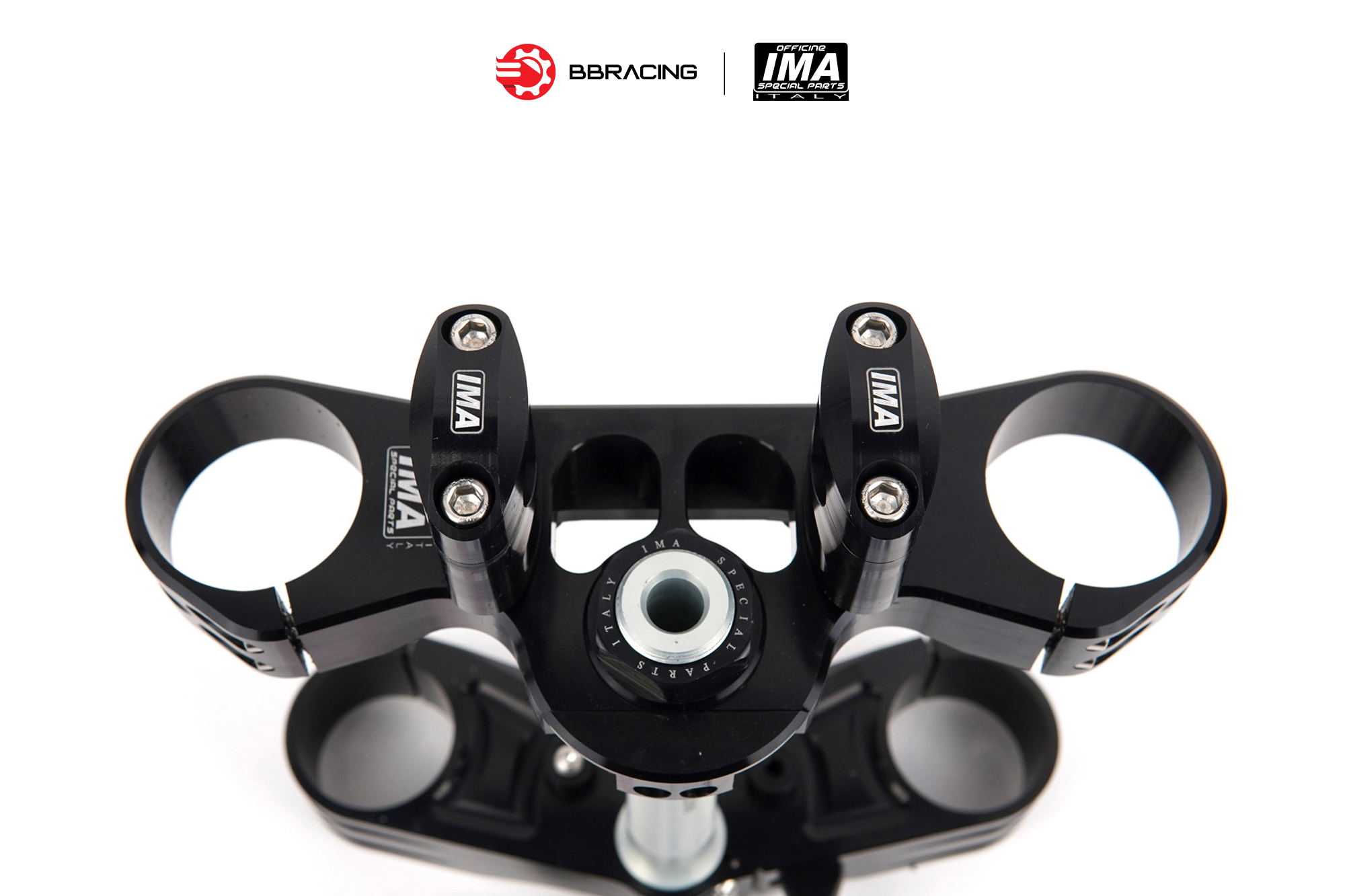

IMA Triple Clamps BMW R NineT 2016-22
SUPERB design, ABSOLUTE aesthetic, high end materials and awesome finish.
These are the main features of this product, born to the ambitious aim to give more value to the famous BMW R Nine T.
Among the news, this model proposes the possibility to use the upper triple clamp with handlebar or clip ons. The steering lock works
| Model | MOD.9T |
|---|---|
| Ø Fork (Top) | 55 mm |
| Ø Fork (Bottom) | 56 mm |
| Material | ERGAL 7075 T6 |
| Off set | Fixed 37mm |

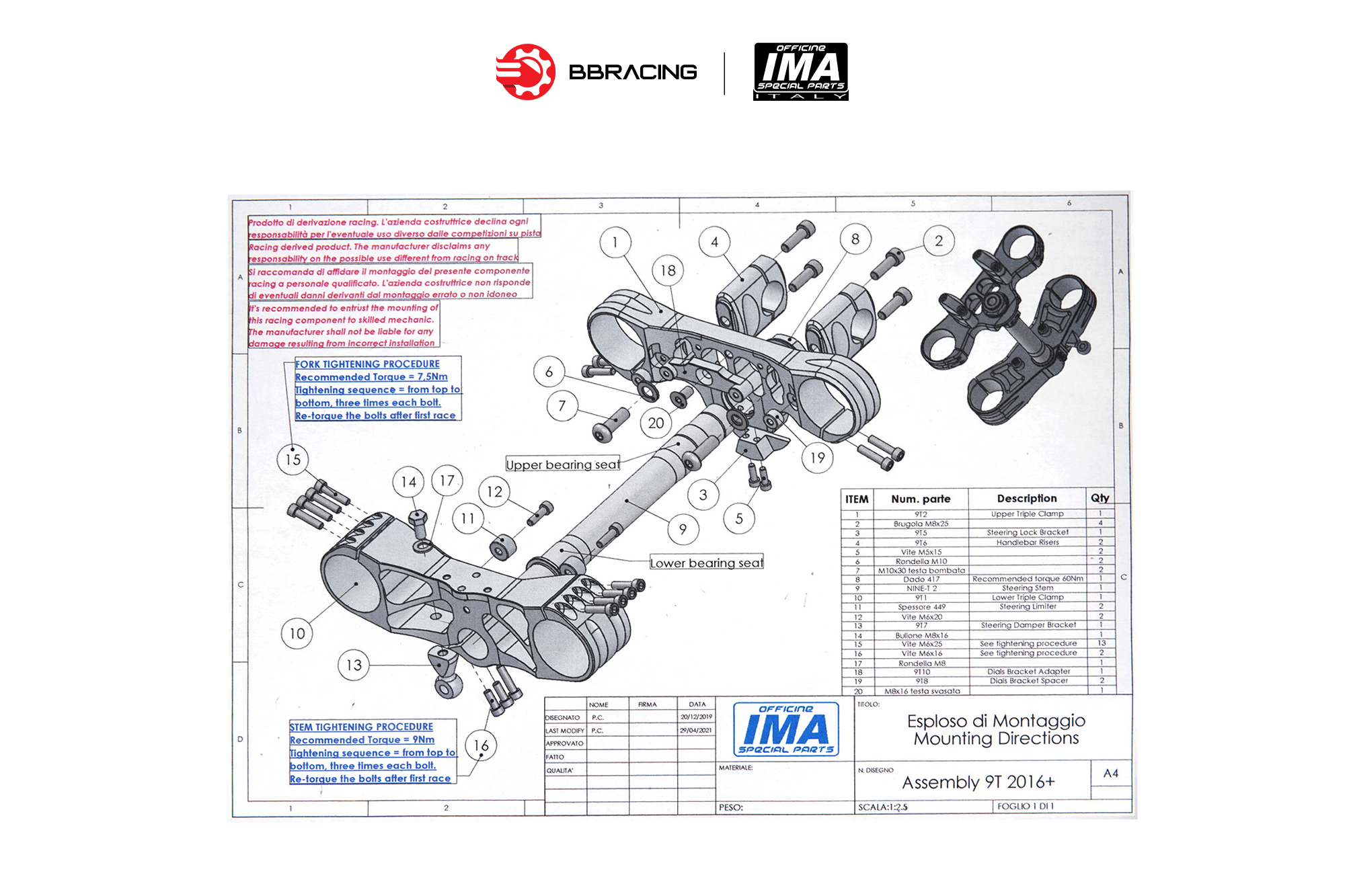

| Recommended fork bolts tightening torque: | 7,5 Nm |
| Sequence Top clamp: | 1,2,1,2,1 |
| Sequence Bottom clamp: | 1,2,3,4,1,2,3,4,1,2,3 |
| Recommended top nut tightening torque: | 60 Nm |
